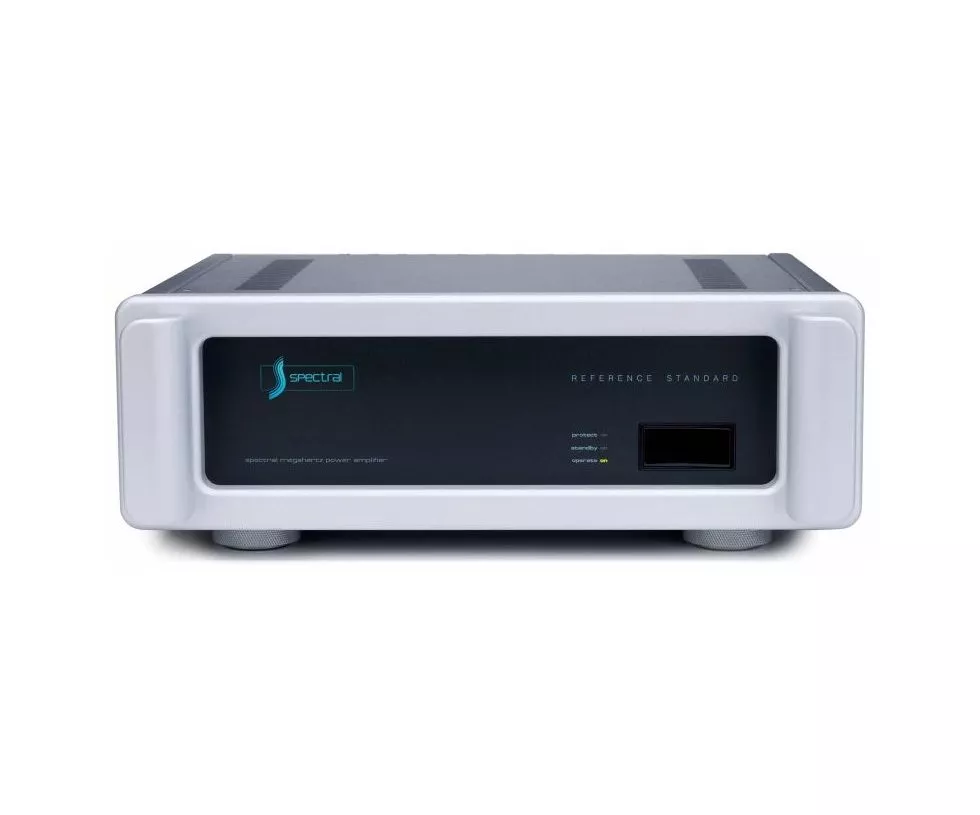

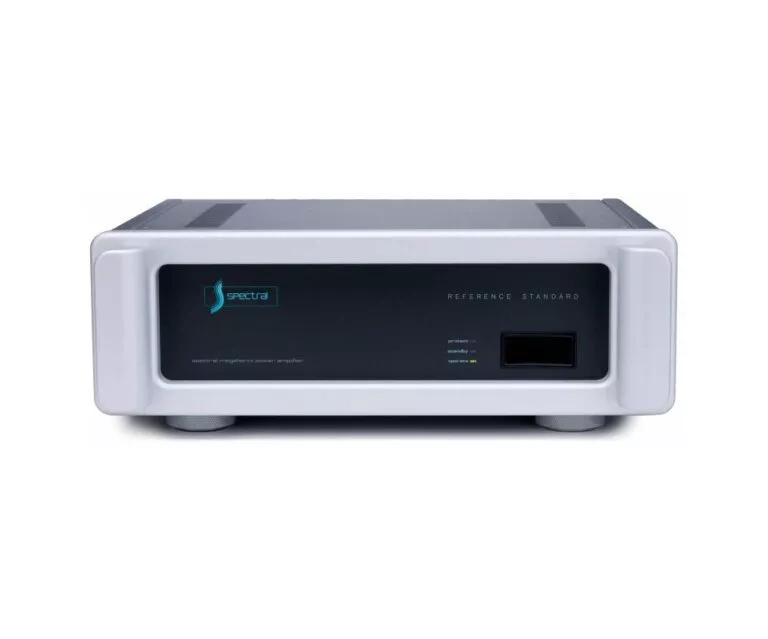

Spectral Audio DMA 300SV

Spectral Audio DMA 300SV

SPECIFICATIONS

• Power Output (continuous)
  – @ 8 ohms – 225 Watts RMS
  – @ 4 ohms – 410 Watts RMS
  – @ 2 ohms – 615 Watts RMS
• Output Current
  – 60 Amps peak per channel
• Frequency Response
  – ±0.1 dB, DC-150 KHz
  – ±1 dB, DC-1 MHz
  – ±3 dB, DC-1.8 MHz
• Distortion
  – Static: Less than 0.015% from DC to 100 KHz, typically 0.009% @ 225 WRMS/8 ohms Distortion
  – Dynamic: 8 Tone Cluster Test 20 KHz @ 500 Hz separation 0.01% 8 ohms 0.015% 4 ohms
• Speed
  – Rise Time: Less than 400 nanoseconds
  – Setting: 1.5 microseconds to -40dB
  – Slew Rate: 600 volts/microsecond
• Noise
  – Signal to Noise: 97dB unweighted, 107dB ASA A
  – Crosstalk: 102dB @ full power 8 ohms
• Input
  – Impedance: 10K ohms
  – Sensitivity: 1.5 volts/nominal output
• Power Supply
  – Line Voltage: 100 volts, 120 volts, 220 volts (internal wiring)
  – AC Voltage Range: ±10%
  – Maximum Consumption: 1600 Watts
  – Quiescent Consumption: 250 Watts
  – Operating Temp: 0° to 50° Celsius range; 32° to 122° Fahrenheit
• Size and Weight
  – Dimensions: 19″ (48.22cm) W, 7 1/4″ (18.4cm) H, 18″ (45.8cm) D
  – Weight: 70 lbs, (29 KG) Net
