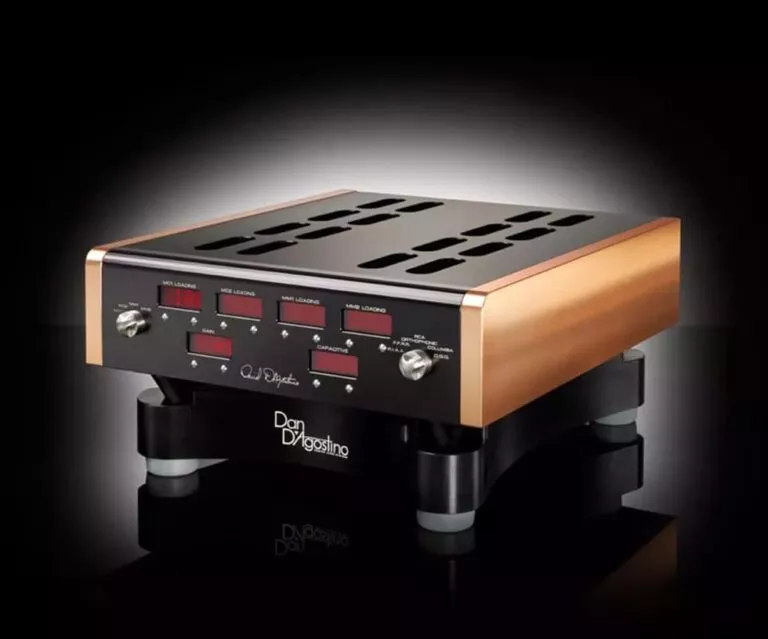

Dan D’Agostino Momentum Préamplificateur Phono

Dan D’Agostino Momentum Préamplificateur Phono

Découvrez en détail les spécificités du Dan D’Agostino Momentum Préamplificateur Phono par Dan d’Agostino.

SPECIFICATIONS

• Finish : Silver ou Black. Custom Finishes Available Upon Request
• Inputs
  -4 pr inputs via XLR and RCA
  -2 MOVING COIL Inputs
  -2 MOVING MAGNET Inputs
  -Inputs are selectable from the front panel
• Outputs : 1 pr Balanced outputs via XLR
• Gain:
  -70 dB for MOVING COIL
  -50dB for MOVING MAGNET
• Input Clipping :
  -1Khz typical for 70cM/sec recorded velocity, gain trim at « 0 »
  -MC 6mV
  -MM 6mV
  -Equivalent input noise, 20 to 20 kHz < 60nV
  -Equivalent input noise current None
  -Gain adjustment is +/- 6dB and is selectable from the front panel.
• Equalization Curves
  There are five selectable equalization curves available from the front panel. These include the Standard RIAA equalization curves and 4 -alternatives used by various record labels. The available curves are:
  -RIAA
  -FFRR
  -RCA orthophonic
  -COLUMBIA
  -DGG
• Frequency response : Represents the above curves +/- .2 dB from 20 Hz to 20 kHz.
• Loads:
  -16 selectable resistive loads for MOVING COIL and MOVINg MAGNET
  -16 selectable capacitive loads for MOVING MAGNET inputs
• Power Supply
  The base of the phono stage houses critical power supply rectificaition circuitry while a third chassis houses the power transformer for maximum isolation from AC-generated electromagnetic fields.
• Dimensions
  Separate:
  -Main: 15.5 x 12.75 x 3 1/2
  -Power Supply: 13.5 x 11 x 2.5
  -Total Height: 7
  -Transformer Box: 4 x 10.5 x 2Découvrez toute la série Momentum :
