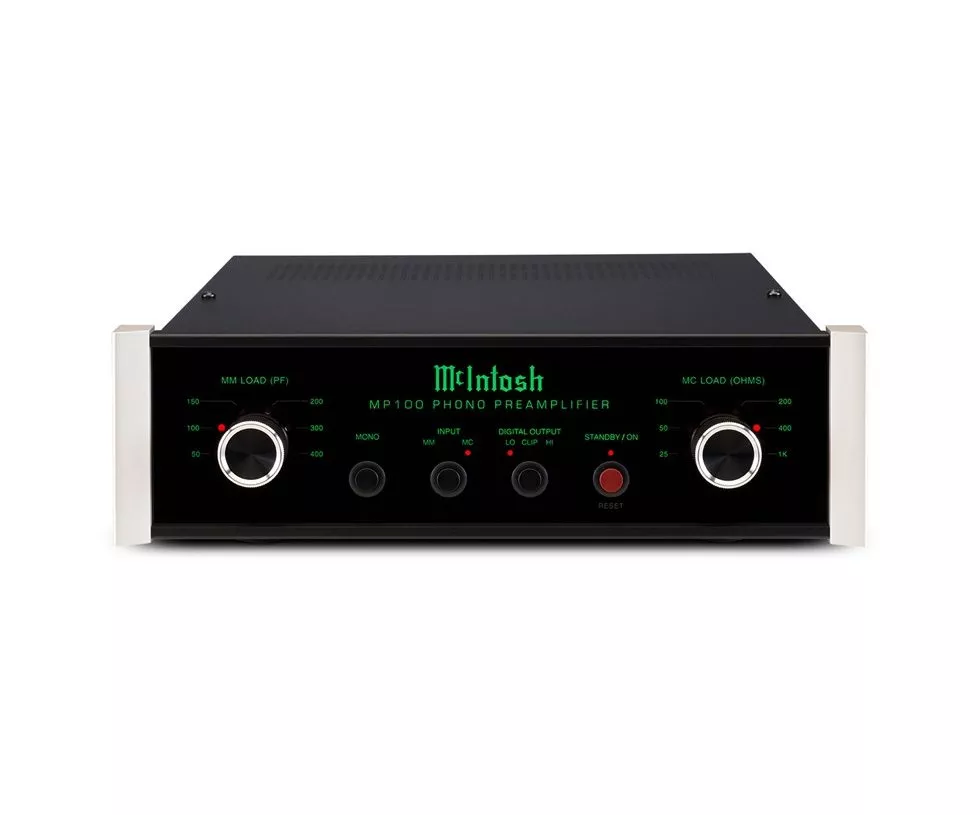

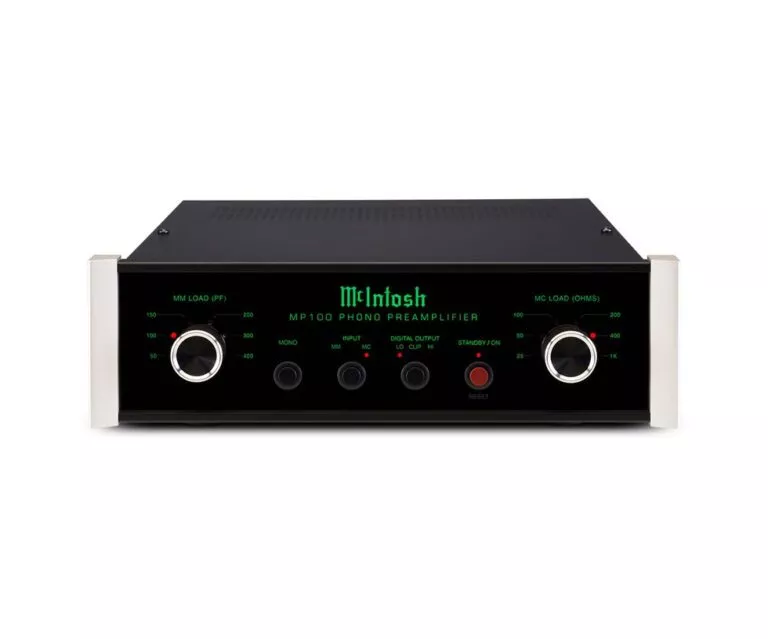

McIntosh MP100

Découvrez en détail les spécificités du McIntosh MP100

SPECIFICATIONS

• Total Harmonic Distortion: 0.005%
• Frequency Response: ±0.3dB from 20Hz to 20,000Hz
• Maximum Volts Out (Balanced / Unbalanced): 16/8 V RMS
• Input Impedance
• Moving Coil: 25, 50, 100, 200, 400 or 1,000 ohms; 470pF
• Moving Magnet: 50, 100, 150, 200, 300, 400pF; 47K ohms
• Phono Voltage Gain
• Moving Coil: 60dB
• Moving Magnet: 40dB
• Signal To Noise Ratio
• Moving Coil: 78dB
• Moving Magnet: 80dB
• Maximum Input Signal (Moving Coil): 8mV
• Maximum Input Signal (Moving Magnet): 80mV
• Sensitivity Phono (Moving Coil): 1mV
• Sensitivity Phono (Moving Magnet): 10mV
• Rated Output: 2V Balanced
1V Unbalanced
• Output Impedance: 200 Ohms Balanced,
100 Ohms Unbalanced

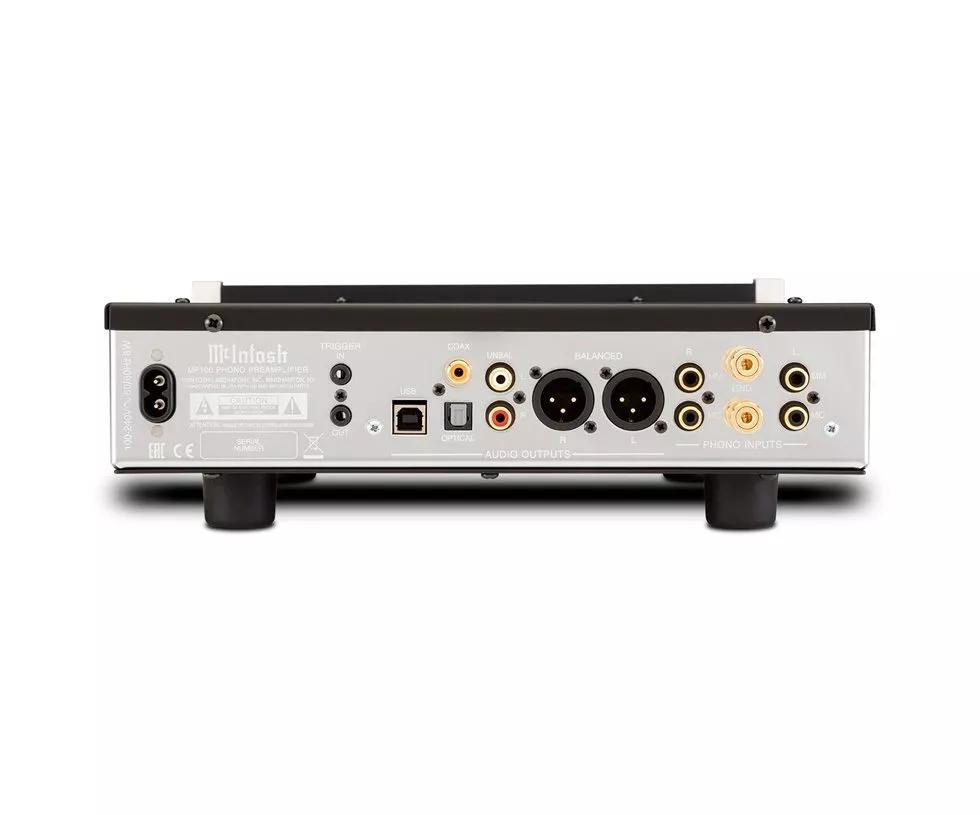

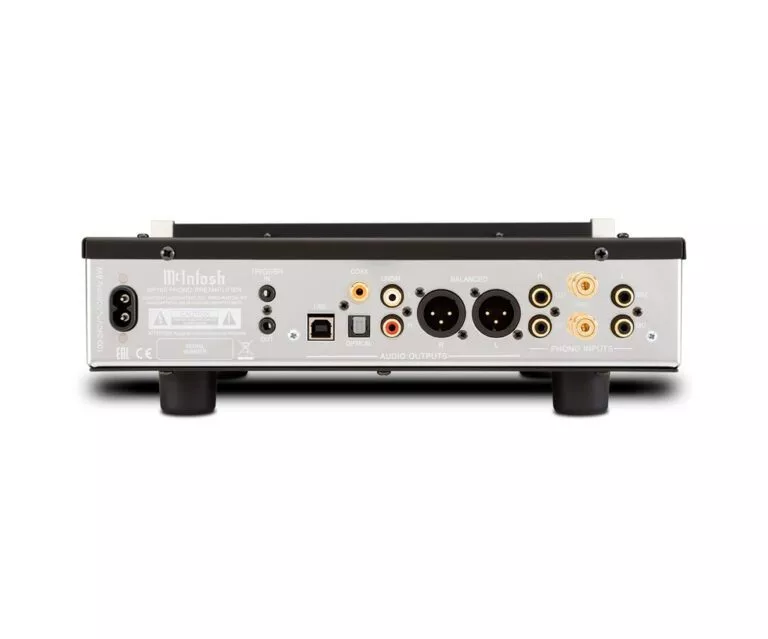

Connectivity

• Outputs Balanced: 1
  Outputs Unbalanced: 1
  Digital USB Audio Output: 1
  Phono Moving Coil Input: 1
  Phono Moving Magnet Input: 1
  Digital Coaxial Output: 1
  Digital Optical Output: 1

Control

• Power Control Input: 1
• Power Control Output: 1

Digital Audio Specifications

• Digital Output Sample Rate
• Optical: PCM – 24Bit – 96kHz
Coaxial: PCM – 24Bit – 96kHz
USB: PCM – 24Bit – 96kHz

General Specifications

• On, Power Consumption: 8 Watts

Weights & Dimensions

• Dimensions (W x H x D): 11.5″ (29.2cm) x 3.78125″ (9.6cm) x 16.75″ (42.5cm)
• Weight: 8.6 lbs (3.9 kg)
• Shipping Weight: 9.6 lbs (4.4 kg)

Le McIntosh MP100 est un étage Phono MM et MC avec sorties analogiques et numériques.
C’est un nouveauté 2016.

McIntosh, vivez la performance légendaire.
