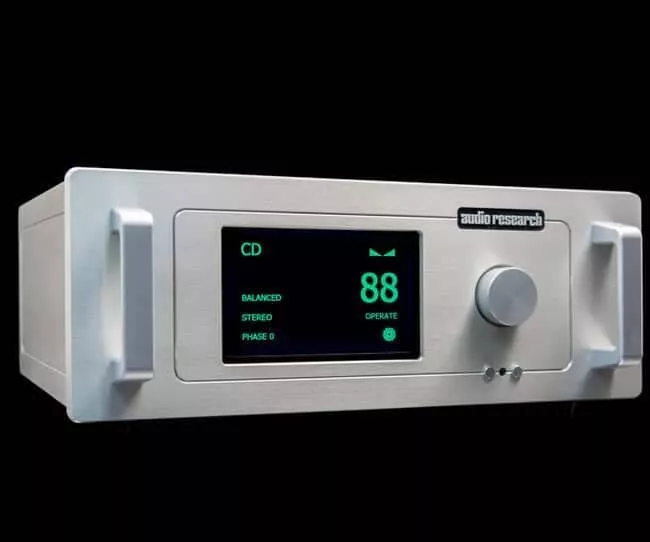

Audio Research Reference 10

par Audio Research

SPECIFICATIONS

• FREQUENCY RESPONSE: +0 -3dB 0.1Hz to 200kHz at rated out-put. (BALANCED, 200k ohms load.)
• DISTORTION: Less than .006% at 2V RMS Balanced output.
• GAIN: Main output (SE or BAL input): 12dB Balanced output, 6dB Single Ended output. Tape output: 0dB. (Processor input: 0dB Balanced)
• INPUT IMPEDANCE: 120K ohms Balanced, 60K ohms SE, Inputs (7): 1, 2, 3, 4, 5, 6, PROCESSOR. (XLR and RCA connectors).
• OUTPUT IMPEDANCE: 600 ohms Balanced, 300 ohms SE main (2), 20K ohms minimum load and 2000pF maximum capacitance.
• Outputs (3): 2 main, 1 tape (XLR and RCA connectors).
• OUTPUT POLARITY: Non inverting.
• MAXIMUM INPUT: 20V RMS maximum Balanced, (10V RMS SE).
• RATED OUTPUTS: 2V RMS (1V RMS SE) into 200K ohm balanced load (maximum balanced output capability is 30V RMS at less than 0.5% THD at 1kHz).
• CROSSTALK: -80dB or better at 1kHz.
• CONTROLS: Volume (104 steps). Push Buttons: Power, Mute, Interactive Touch Screen. Rear RS-232 control and IR input.
• POWER SUPPLIES: Electronically regulated low and high voltage supplies. Automatic 40 sec. warm-up/brown-out mute. Line regulation better than .01%.
• NOISE: 1.7uV RMS residual IHF weighted balanced equivalent input noise with volume at 1 (109dB below 2V RMS output.)
• TUBE COMPLEMENT: (8)-6H30P dual triodes, plus (2 each) 6550C and 6H30P in power supply.
• POWER REQUIREMENTS: 100-135VAC 60Hz (200-270VAC 50/60Hz) 220 watts. Standby: 2.2 watts.
• DIMENSIONS: 19” (48 cm) W x 7” (17.8 cm) H (standard panel) x15.5” (39.4 cm) D. Handles extend 1.5” (3.8 cm) forward of the front panels.
• WEIGHT: Audio Chassis: 23.6 lbs. (10.7 kg) Net; 33.3 lbs. (15.1 kg) Shipping. Power Supply Chassis: 37.65 lbs. (17.07 kg) Net.
• Finition: Alu brossé ou noir
• Livré avec nouvelle télécommande métal
