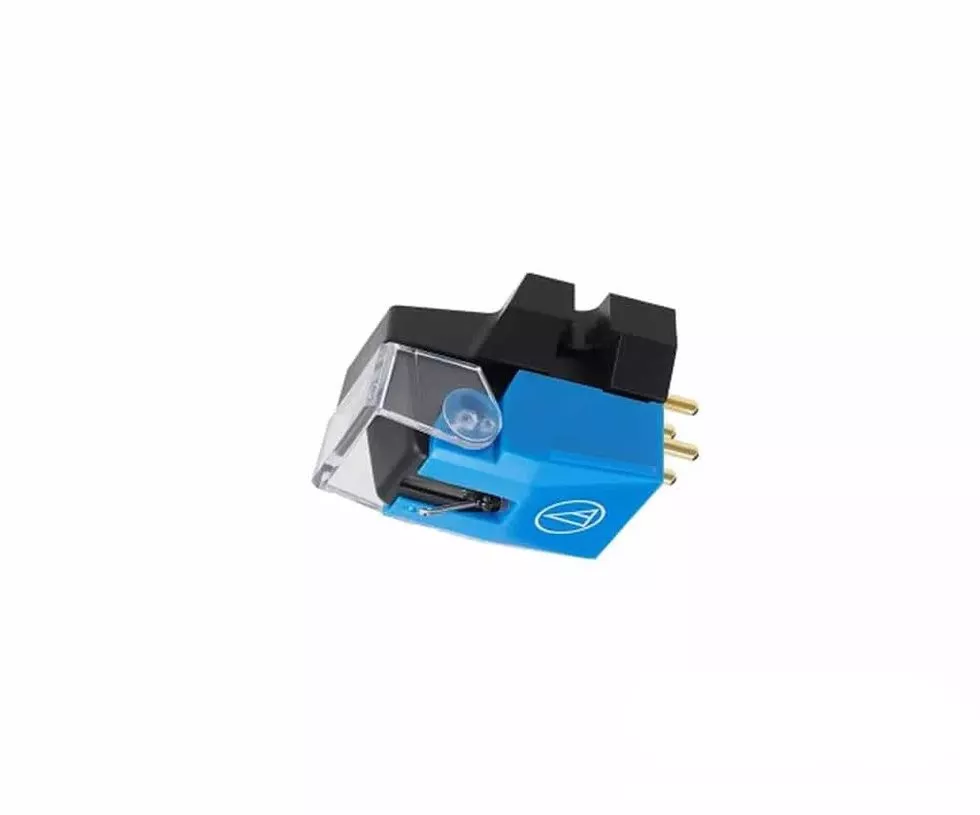

Audio Technica VM610MONO
SPECIFICATIONS
| Type | VM Type |
| Mounting | 1/2” centres |
| Frequency Response | 20 – 20,000Hz |
| Output Voltage | 3.0mV (1kHz, 5cm/sec.) |
| Vertical Tracking Angle | 23˚ |
| Vertical Tracking Force Range | 1.8 – 2.2g (2.0g standard) |
| Stylus Shape | Conical Bonded |
| Stylus Size | 0.6 mil |
| Stylus Construction | Bonded Round Shank |
| Cantilever | Aluminium Pipe |
| Coil Impedance | 1,400Ω (1kHz) |
| Static Compliance | 35 x 10-6 cm/dyne |
| Dynamic Compliance | 8 x 10-6 cm/dyne (100Hz) |
| Recommended Load Impedance | 47,000Ω |
| Recommended Load Capacitance | 100 – 200pF |
| Weight | 6.4g |
| Dimensions | 17.3 (H) x 17.0 (W) x 28.2 (L) mm |
| Replacement Stylus | VMN10CB |
| Accessories Included | Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2 |
