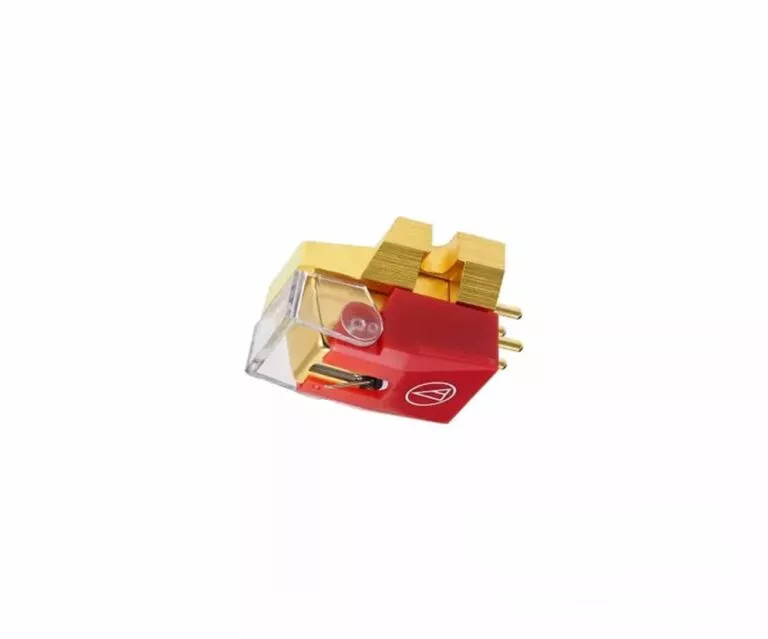

Audio Technica VM740ML
SPECIFICATIONS
| Type | VM Type |
| Mounting | 1/2” centres |
| Frequency Response | 20 – 27,000Hz |
| Channel Separation | 28dB (1kHz) |
| Output Channel Balance | 1.0dB (1kHz) |
| Output Voltage | 4.0mV (1kHz, 5cm/sec.) |
| Vertical Tracking Angle | 23˚ |
| Vertical Tracking Force Range | 1.8 – 2.2g (2.0g standard) |
| Stylus Shape | Microlinear |
| Stylus Size | 0.12 x 2.2 mil |
| Stylus Construction | Nude Square Shank |
| Cantilever | Aluminium Tapered Pipe |
| Coil Impedance | 2,700Ω (1kHz) |
| Static Compliance | 40 x 10-6 cm/dyne |
| Dynamic Compliance | 10 x 10-6 cm/dyne (100Hz) |
| Recommended Load Impedance | 47,000Ω |
| Recommended Load Capacitance | 100 – 200pF |
| Weight | 8.0g |
| Dimensions | 17.3 (H) x 17.0 (W) x 28.2 (L) mm |
| Replacement Stylus | VMN40ML |
| Accessories Included | Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1 |
