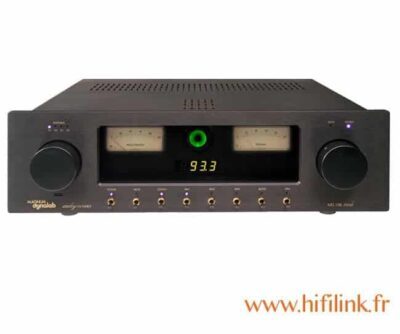

Magnum Dynalab MD-107T

Magnum Dynalab MD-107T

SPECIFICATIONS

• Usable sensitivity- Mono – 0.7 uV 9.0 dBf
• 50 dB quieting – Mono – 2.0 uV 9.9 dBf
• 50 dB quieting – Stereo – 2.3 uV 25.0 dBf
• Capture ratio – 1.5 dB
• Image rejection – 110.0 dB
• Signal to noise ratio – 80.0 dB
• Alternate channel – Wide – 40.0 dB
• Alternate channel – Narrow – 70.0 dB
• Adjacent channel – Wide – 3.0 dB
• Adjacent channel – Narrow – 35.0 dB
• THD – Mono – 0.10 %
• THD – Stereo – 0.18 %
• Stereo separation – 50.0 dB
• AM suppression – 70.0 dB
• SCA rejection – 80.0 dB
• IF rejection – 80.0 dB
• 19 KHz and 38 KHz component rejection – 75.0 dB
• Audio frequency response (+/- 1 dB) – 15 Hz – 17 KHz
• Balanced audio output (600 ohms) 2.2 V
• Line audio output (RCA) – 1.0 V
• Line power (Must be specified) –
• 110/220/230/240- VAC
• Dimensions (inches H.W.D.) – 4 x 19 x 13.5
• Dimensions (cm H.W.D.) – 11.43 x 48.3 x 34.3
• Weight (lbs./kgs) – 18/7.96
• Power consumption (Max) – 50w
• Finition: noire
• Option Façade silver
• Option télécommande pure analogique
• Option DAC

TUBE SPECIFICATIONS

• Filament current (max) 330 mA (min) 270 mA
• Anode current (1) (max) 1.07 mA (min) 0.92 mA
• Anode current (2) (max) 1.07 mA (min) 0.92 mA
• Total harmonic distortion < 1.8%
• Tubes position 1 and 2 MD Reference 6922
