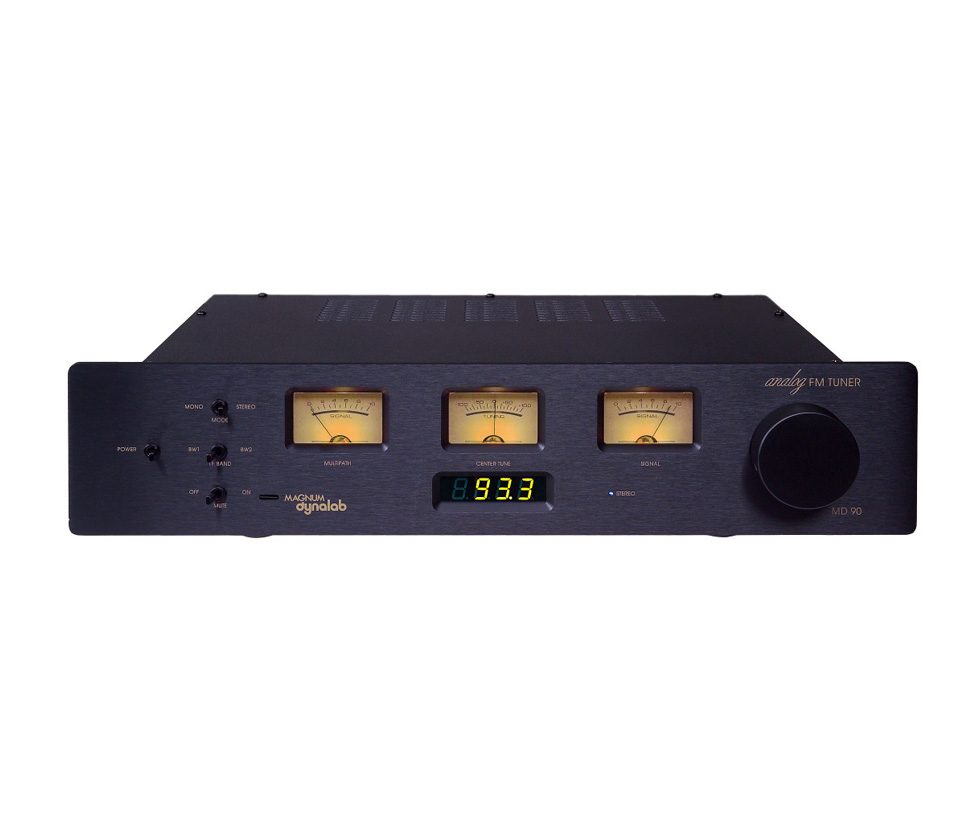

Magnum Dynalab MD-90T

Magnum Dynalab MD-90T

par Magnum Dynalab

SPECIFICATIONS

Mêmes caractéristiques que le MD90

• Transformateur Toroïdal
• Center Tune, Signal Strength et multipath (ondes réfléchies)
• Connectiques plaquées OR
• Cable pur cuivre Kimber

Et en plus

• Transformateur custom Plitron
• carte principal plaquée or
• Capacités Solen polypropylène
• Tubes Electro Harmonix 6922
• Usable sensitivity (mono): 10.3 dBf
• Usable sensitivity (stereo): 11.2 dBf
• 50 dB quieting sensitivity (mono): 13.2 dBf
• 50 dB quieting sensitivity (stereo): 34.0 dBf
• Capture Ratio: 1.5 dB
• Image rejection: 75.0 dB
• signal to noise ratio (SNR): 75.0 dB
• alternate channel – wide: 60.0 dB
• alternate channel – narrow: 80.0 dB
• adjacent channel – wide: 9.0 dB
• adjacent channel – narrow: 25.0 dB
• THD – mono: 0.10%
• THD – stereo: 0.18%
• stereo separation: 50.0 dB
• AM suppression: 70.0 dB
• SCA rejection: -80.0 dB
• -3 dB frequency response: 20 Hz – 17 KHz
• Power required: 120/220/230/240 vac
• Dimensions: 19″ (w) x 13″ (d) x 4.25″ (h)
• Weight: 12 lbs
• Standard faceplate (black): 17″
• Finition: noire

Option

• Façade argent
• Option DAC
• télécommande

Tube Specifications

• Filament Current: (max) 330 mA (min) 270 mA
• Anode Current (1): (max) 1.07 mA (min) 0.92
• Anode Current (2): (max) 1.07 mA (min) 0.92
• Total Harmonic Distortion: 1.8 %
