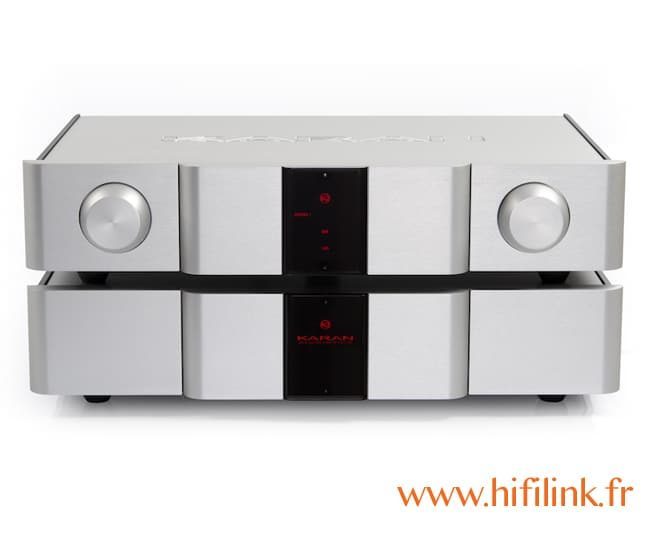

Karan Acoustics KA PH reference

For many years Karan Acoustics has had a strong desire to offer the finest phono preamplifier, based on the latest
technologies. We developed a new fully balanced design with absolutely no restrictions. Ultimate statement, using best circuit
boards, best parts you can find on world market, separate extremely strong power supply with all of our knowledge and
experience built into it. That is the new KA PH Reference.

* fully balanced topology
* power supply  with four levels of stabilization per channel
* 3 toroidal transformers. Every channel has it’s own transformer. Third transformer is for control circuits.
* frequency response DC-300kHz +0,-3dB
* RIAA MM/MC:  +/- 0.1 dB
* EMI MM/MC:  +/- 0.2 dB
* DECCA MM/MC:  +/- 0.2 dB
* COLUMBIA MM/MC:  +/- 0.2 dB
* TELDEC MM/MC:  +/- 0.2 dB
S/N ratio better than:  -90dB(phono MM), -81dB(phono MC) *
* Output level: 12V Eff
* Intermodulation distortion less than 0.006%
* Dimensions 500 x 110 x 360 mm  W x H x D, each case
* Dimensions in box 640x230x470 mm WxHxD each box
* Net weight for electronic part 16 kg; Btto weight for electronic part 22 kg
* Btto weight for power supply 18 kg; Btto weight for electronic part 24 kg
